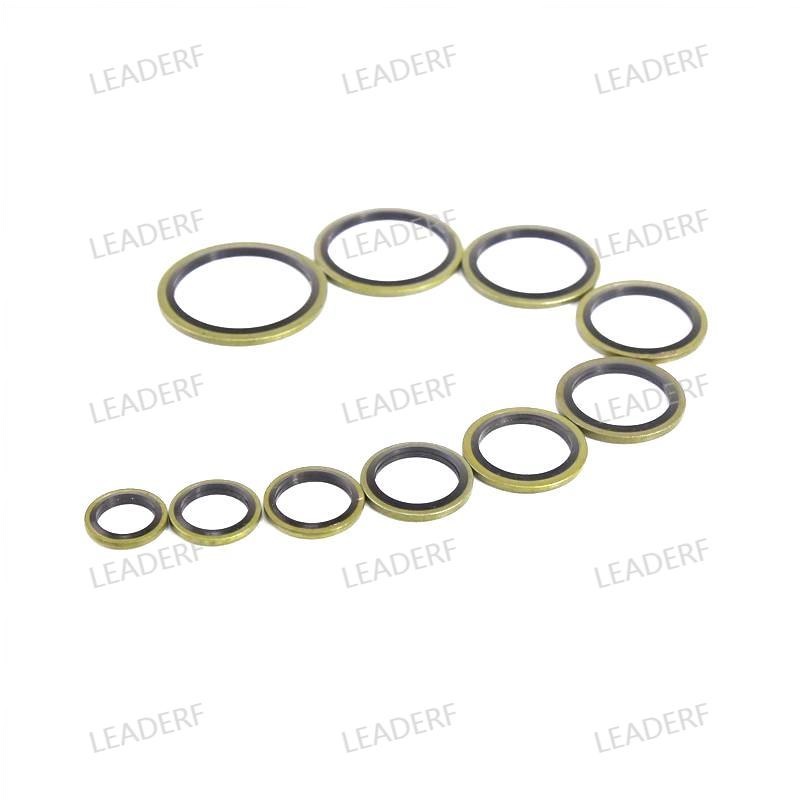

Description
|
订货号 ORDER N0. |
适用螺纹 (Applicable Thread) |
尺寸(Size) | |||
| D外径±0.1 | d内径 | F内径 | H厚度 | ||
| BS/A6.00 | M6 | 12 | 6.7 | 4.7 | 2 |
| BS/A8.00 | M8 | 14 | 8.7 | 6.4 | 2 |
| BS/10.00 | M10 | 16 | 10.7 | 8.05 | 2 |
| BS/A12.00 | M12 | 18 | 12.7 | 9.73 | 2 |
| BS/A14.00 | M14 | 20 | 14.7 | 11.38 | 2 |
| BS/A16.00 | M16 | 22 | 16.7 | 13.41 | 2 |
| BS/A18.00 | M18 | 25 | 18.7 | 14.76 | 2 |
| BS/A20.00 | M20 | 28 | 20.7 | 16.76 | 2 |
| BS/A22.00 | M22 | 30 | 22.7 | 18.74 | 2 |
| BS/A24.00 | M24 | 32 | 24.7 | 20.11 | 2 |
| BS/A27.00 | M27 | 35 | 27.7 | 23.3 | 2 |
| BS/A30.00 | M30 | 38 | 31 | 25.7 | 2 |
| BS/A33.00 | M33 | 42 | 34 | 28.7 | 2 |
| BS/A36.00 | M36 | 45.7 | 36.7 | 31.1 | 2 |
| BS/A39.00 | M39 | 49.7 | 39.7 | 34.1 | 2 |
| BS/A42.00 | M42 | 52.7 | 42.7 | 36.5 | 2 |
| BS/A45.00 | M45 | 55.7 | 45.7 | 39.5 | 2 |
| BS/A48.00 | M48 | 59.7 | 48.7 | 41.9 | 2 |
| BS/A52.00 | M52 | 65.7 | 52.7 | 46.7 | 2 |
| BS/A60.00 | M60 | 74.7 | 60.7 | 52.7 | 2 |
Note:
1. The real item color may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
3.All manufacturers' names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part listed is the product of these manufactures, Welcome to contact usfor more details
